Ford 4000 Utility Tractor information

By Amelia

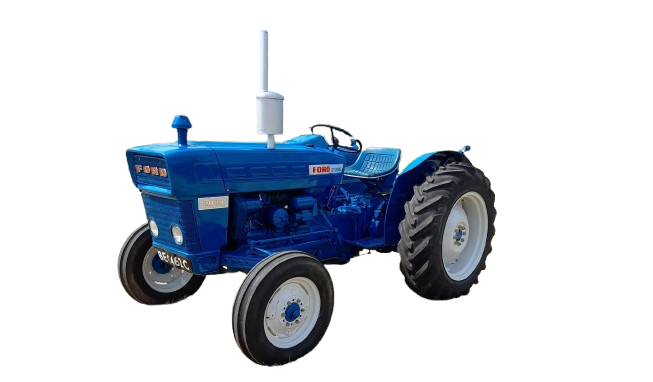

Ford 4000

  • Built in Highland Park, Michigan, USA
  • The three-cylinder Ford 4000 series tractors, which debuted in 1965, were entirely different from the old 801-based 4000 tractor.
  • Horsepower: 57 hp
  • Weight: 4,885 lbs
  • Rear Lift Capacity: 3200 lbs
  • Original price was $3,500 in 1975

Ford 4000 Specs

Ford 4000 Serial Numbers

1965C100000
1966C124200
1967C161300
1968C190200
1969C226000
1970C257600
1971C292100
1972C327200
1973C367300
1974C405200
1975C450700

Ford diesel 3-cylinder liquid-cooled Engine Detail

Displacement201 ci
3.3 L
Bore/Stroke4.40×4.40 inches
112 x 112 mm
Power57 hp
42.5 kW
Air cleanerdry
Compression16.5:1
Rated RPM2200
Torque153 lb-ft
207.5 Nm
Torque RPM1300
Firing order1-2-3
Starter volts12
Coolant capacity14 qts
13.2 L
Intake valve clearance0.015 inches*
0.381 mm
Exhaust valve clearance0.018 inches*
0.457 mm

Ford gasoline 3-cylinder liquid-cooled Engine Detail

Displacement201 ci
3.3 L
Bore/Stroke4.40×4.40 inches
112 x 112 mm
Power56.5 hp
42.1 kW
Air cleanerdry
Compression7.75:1
Torque161 lb-ft
218.3 Nm
Torque RPM1100
Starter volts12

Ford 4000 Power

Engine57 hp
42.5 kW
PTO (claimed)52 hp
38.8 kW
Plows4
Drawbar (tested)47.57 hp
35.5 kW
PTO (tested)52.65 hp
39.3 kW

Dual Range Transmission

TransmissionDual Range
Gears8 forward and 2 reverse
Clutchdry disc
Oil capacity13.2 qts
12.5 L
 17 qts (independent PTO)
16.1 L
Four-speed gear selector on left, high-low range select lever on right. Tractor must be stopped before shifting.

Select-O-Speed Transmission

TransmissionSelect-O-Speed
Gears10 forward and 2 reverse
Clutchhydraulic wet disc
Oil capacity12.3 qts
11.6 L
Transmission can shifted between gears while moving.

Mechanical

Two-wheel drive
Final drivesinboard planetary
Differential lockmechanical rear Opt
Steeringmanual
Steeringpower Opt
Mechanical wet disc brakes
Open operator station

Capacity

Fuel16 gal
60.6 L
Hydraulic system8.4 gal (transmission PTO)
31.8 L
 8.1 gal (independent PTO)
30.7 L

Hydraulics

Typeopen center
Capacity8.4 gal (transmission PTO)
31.8 L
 8.1 gal (independent PTO)
30.7 L
Pressure2500 psi
172.4 bar
Pump flow5.4 gpm
20.4 lpm
Steering flow4.5 gpm
17.0 lpm
Steering press.800 psi
55.2 bar

Tractor hitch

Rear TypeII/I
Rear lift3200 lbs
1451 kg

Power Take-off (PTO)

Rear PTOtransmission
 independent Opt
Rear PTO Type540
 1000
Engine RPM540@1800
 1000@1950

Electrical

Groundnegative
Charging systemgenerator
Charging amps22
Battery volts12
Battery AH80 (gas)
 128 (diesel)

Ford 4000 Tires

Ag front6.00-16
Ag rear12.4-38
Ag front7.50-16
 7.50-18
Ag rear13.6-38
 14.9-30
 16.9-26
 16.9-30
 18.4-26

Dimensions

Wheelbase84.5 inches
214 cm
Length137 inches
347 cm
Width67.5 inches
171 cm
Operating weight4,885 lbs
2215 kg
Ballasted weight8,215 lbs
3726 kg
Ground clearance17.25 inches
43 cm
Rear tread52 to 80 inches
132 to 203 cm

Ford 4000 Height

Steering wheel63 inches
160 cm
Hood57.5 inches
146 cm
Exhaust84.75 inches
215 cm

Attachments

Ford 771 loader
Ford 772 loader
Ford 7210 loader
Ford 7309 loader
