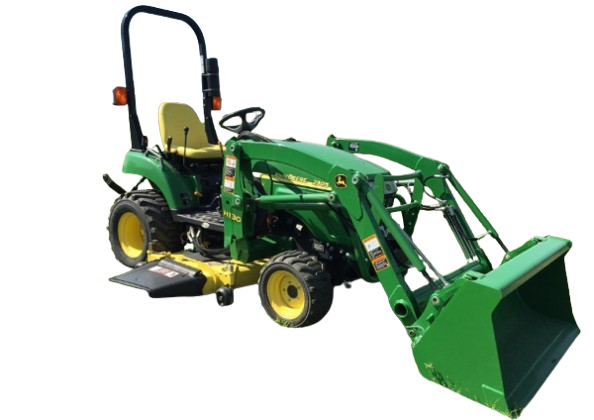

John Deere 2305
John Deere 2305 Specs
John Deere 2305 Serial Numbers
| 2005 | 100001 |
| 2006 | 200001 |
| 2007 | 320001 |
| 2008 | 420001 |
| 2009 | 520001 |
| 2010 | 620001 |
Yanmar 3TNV76 diesel 3-cylinder liquid-cooled inline Engine Detail
| Displacement | 68 ci 1.1 L |
| Bore/Stroke | 2.99×3.23 inches 76 x 82 mm |
| Rated Power (gross) | 24.1 hp 18.0 kW |
| Air cleaner | dual dry element |
| Compression | 23.4:1 |
| Rated RPM | 3000 |
| Operating RPM | 1170-3170 |
| Torque | 41.7 lb-ft 56.5 Nm |
| Torque RPM | 3000 |
| Starter volts | 12 |
| Starter power | 1.6 hp 1.2 kW |
| Coolant capacity | 3.4 qts 3.2 L |
John Deere 2305 Power
| Engine (gross) | 24.1 hp 18.0 kW |
| PTO (claimed) | 18 hp 13.4 kW |
Transmission
| Type | hydrostatic |
| Gears | infinite forward and reverse (2-range) |
| Oil capacity | 13.6 qts 12.9 L |
| Hydrostatic transmission operated with two foot pedals and range-shift lever. Tractor must be stopped to shift ranges. Optional cruise control is engaged by dashboard button. | |
Mechanical
| Four-wheel drive | |
| Final drives | spur gear |
| Power steering | |
| Wet disc brakes | |
| Two-post fixed ROPS. | |
Capacity
| Fuel | 5.5 gal 20.8 L |
| Hydraulic system | 3.4 gal 12.9 L |
| Front axle | 2.6 qts 2.5 L |
Hydraulics
| Type | open center |
| Capacity | 3.4 gal 12.9 L |
| Pressure | 1987 psi 137.0 bar |
| Valves | 2 |
| Pump flow | 2.9 gpm 11.0 lpm |
| Total flow | 5.2 gpm 19.7 lpm |
| Steering flow | 2.3 gpm 8.7 lpm |
Tractor hitch
| Rear Type | I (limited) |
| Rear lift (at ends) | 1433 lbs 650 kg |
| Rear lift (at 24″/610mm) | 681 lbs 308 kg |
Power Take-off (PTO)
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Mid PTO | independent |
| Mid PTO Type | 2100 |
Electrical
| Ground | negative |
| Charging system | alternator |
| Charging amps | 20 |
| Battery CCA | 500 |
| Battery volts | 12 |
John Deere 2305 Tires
| Lawn/turf front | 18×8.5-10 |
| Lawn/turf rear | 26×12.00-12 |
| Industrial front | 18×8.5-10 |
| Industrial rear | 26×12.00-12 |
Dimensions
| Wheelbase | 57.1 inches 145 cm |
| Length | 102.6 inches 260 cm |
| Width | 44.9 inches 114 cm |
| Height (hood) | 42 inches 106 cm |
| Height (ROPS) | 77.5 inches 196 cm |
| Clearance (front axle) | 7.7 inches 19 cm |
| Front tread | 39.6 inches 100 cm |
| Rear tread | 33.6 inches 85 cm |
John Deere 2305 Weight
| Shipping | 1450 lbs 657 kg |
| Operating | 1865 lbs 845 kg |
| Max Drawbar | 562 lbs 254 kg |
| Max front axle | 1654 lbs 750 kg |
| Max rear axle | 1477 lbs 669 kg |
Attachments
| 54″ mid-mount mower deck | |
| 62″ mid-mount mower deck | |
| Front-end loader |
