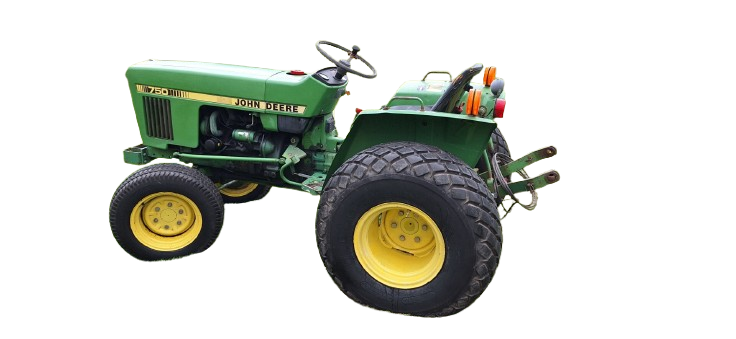

John Deere 750
John Deere 750 Specs
| Production | |
| Distributor | John Deere |
| Manufacturer | Yanmar |
| Compact Utility tractor | |
| Built in Japan | |
| Original price | $7,070 (1983 ) |
| $10,000 (1989 ) | |
Yanmar 3T80 diesel 3-cylinder liquid-cooled inline Engine Detail
| Displacement | 78.2 ci 1.3 L |
| Bore/Stroke | 3.15×3.35 inches 80 x 85 mm |
| Power (gross) | 20 hp 14.9 kW |
| Air cleaner | dry |
| Pre-heating | therostart |
| Compression | 22.5:1 |
| Rated RPM | 2400 |
| Starter volts | 12 |
| Oil capacity | 4.0 qts 3.8 L |
| Coolant capacity | 4.5 qts 4.3 L |
John Deere 750 Power
| Engine (gross) | 20 hp 14.9 kW |
| PTO (claimed) | 18.5 hp 13.8 kW |
| Drawbar (tested) | 15.30 hp 11.4 kW |
| PTO (tested) | 18.54 hp 13.8 kW |
Transmission
| Type | gear |
| Gears | 8 forward and 2 reverse |
| Clutch | 200mm dry disc |
| Oil capacity | 15 qts 14.2 L |
| Four gears, plus reverse, in two ranges. | |
John Deere 750 Serial Numbers
| 1981 | 1000 |
| 1982 | 3448 |
| 1983 | 5613 |
| 1984 | 8457 |
| 1985 | 13001 |
| 1986 | 18501 |
| 1987 | 22601 |
| 1988 | 26450 |
| Final | 28161 |
Mechanical
| Two- or four-wheel drive | |
| Differential lock | mechanical rear |
| Steering | manual |
| power Opt | |
| Differential mechanical dry, internal expanding shoe brakes | |
| Two-post fixed ROPS. | |
Capacity
| Fuel | 6.2 gal 23.5 L |
| Hydraulic system | 3.75 gal 14.2 L |
Hydraulics
| Type | open center |
| Capacity | 3.75 gal 14.2 L |
| Pressure | 2030 psi 140.0 bar |
| Valves | 2 Opt |
Tractor hitch
| Rear Type | I |
| Control | position control |
Power Take-off (PTO)
| Rear PTO | transmission |
| Clutch | 200mm over-running dry disc |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@2300 |
| Front PTO | independent Opt |
| Clutch | electro-magnetic |
Electrical
| Ground | negative |
| Charging system | alternator |
| Charging amps | 15 |
| Battery CCA | 370 |
| Battery volts | 12 |
| Battery Group | BCI 24 |
John Deere 750 Tires
| Standard tires (ag) | Front: 4.00-15. Rear: 9.5-24 |
| Front: 5-14. Rear: 9.5-24 | |
| Lawn/turf front | 25/8.5-14 |
| Lawn/turf rear | 13.6-16 |
Dimensions
| Wheelbase | 61.1 inches 155 cm |
| Length | 112 inches 284 cm |
| Width | 45.1 inches 114 cm |
| 2WD Clearance (front axle) | 15.1 inches 38 cm |
| 4WD Clearance (front axle) | 13 inches 33 cm |
| 2WD Front tread | 35 inches 88 cm |
| 4WD Front tread | 36 inches 91 cm |
| Rear tread | 35/39 inches 88/99 cm |
John Deere 750 Weight
| 2WD Shipping | 1900 lbs 861 kg |
| 4WD Shipping | 2000 lbs 907 kg |
| Max Drawbar | 625 lbs 283 kg |
John Deere 750 Height
| 2WD Hood | 45.6 inches 115 cm |
| 4WD Hood | 46.4 inches 117 cm |
| ROPS | 74.9 inches 190 cm |
| Exhaust | 76.9 inches 195 cm |
Attachments
| 60″ mid-mount mower deck | |
| Snowblower | |
| Blade | |
| John Deere 67 loader | |
| John Deere 70 loader | |
| Backhoe | |
| Advertised attachments included the model 448 tiller and a 54-inch rotary mower. |
60″ Mower deck
| Type | mid-mount John Deere 160 |
| 3-blade | |
| Cutting width | 60 inches 152 cm |
| Weight | 310 lbs 140 kg |
| Overall width | 72.5 inches 184 cm |
John Deere 7 Backhoe
| Backhoe type | John Deere 7 Backhoe |
| Weight | 650 lbs 294 kg |
| Transport height | 69 inches 175 cm |
| Digging depth | 90 inches 228 cm |
| Reach from pivot | 114 inches 289 cm |
| Loading height | 70 inches 177 cm |
| Bucket Rotation | 180° |
| Swing Arc | 180° |
