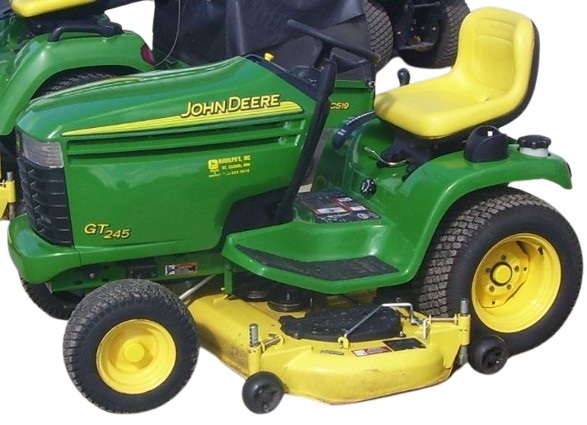

John Deere GT245
John Deere GT245 Specs
| Production | |
| Manufacturer | John Deere |
| Garden tractor | |
| Built in Horicon | Waterloo, Iowa, USA |
| Original price was $5,649 in 2002 | |
GT245 Serial Numbers
| 2002 | 060001 |
| 2003 | 070001 |
| 2004 | 110001 |
| 2005 | 130001 |
Kawasaki FH601V gasoline 2-cylinder air-cooled vertical-shaft V-Twin Engine Detail
| Displacement | 675 cc 41.2 ci |
| Bore/Stroke | 2.96×2.99 inches 75 x 76 mm |
| Power (gross) | 20 hp 14.9 kW |
| Air cleaner | foam pre-cleaner and paper element |
| Starter volts | 12 |
| Point gap | 0.030 inches 0.762 mm |
John Deere GT245 Transmission
| Transmission | Tuff Torq K71 |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 4.6 qts 4.4 L |
| Oil type | Low Viscosity HY-GARD |
Mechanical
| Two-wheel drive | |
| Manual steering | |
| Wet disc brakes | |
| Open operator station. |
Tractor hitch
| Type | sleeve hitch Opt |
Power Take-off (PTO)
| Mid PTO | independent |
| Clutch | electric |
Dimensions
| Wheelbase | 49 inches 124 cm |
| Length | 72 inches 182 cm |
| Width | 39 inches (narrow spacing) 99 cm |
| 41.5 inches (wide spacing) 105 cm | |
| Height | 47 inches 119 cm |
| Shipping weight | 585 lbs* 265 kg |
John Deere GT245 Tires
| Lawn/turf front | 16×6.5-8 |
| Lawn/turf rear | 23×10.5-12 |
Attachment overview
| 42″ mid-mount mower deck | |
| 44″ mid-mount mower deck | |
| 48″ mid-mount mower deck | |
| 54″ mid-mount mower deck | |
| Snowblower | |
| Blade | |
| The GT245 was compatible with the M03264X 30-inch mechanical tiller. |
42″ Mower deck
| Model | John Deere 42C |
| Cutting Width | 42 inches (106 cm) |
| Total Width | 53 inches (134 cm) |
| Blades | 2-blade |
| Discharge | Right-discharge |
| Cut Height | 1 to 4 inches (2 to 10 cm) |
| Weight | 86 lbs (39 kg) |
44″ Mower deck
| Model | John Deere Piranha |
| Cutting Width | 44 inches (111 cm) |
| Total Width | 45.7 inches (116 cm) |
| Blades | 3-blade |
| Discharge Type | Mulching |
| Cut Height | 1 to 4 inches (2 to 10 cm) |
| Weight | 125 lbs (56 kg) |
48″ Mower deck
| Model | John Deere 48C |
| Cutting Width | 48 inches (121 cm) |
| Total Width | 61.1 inches (155 cm) |
| Blades | 3-blade |
| Discharge Type | Right-discharge |
| Cut Height | 1 to 4 inches (2 to 10 cm) |
| Weight | 117 lbs (53 kg) |
54″ Mower deck
| Model | John Deere 54C |
| Cutting Width | 54 inches (137 cm) |
| Total Width | 67.7 inches (171 cm) |
| Blades | 3-blade |
| Discharge Type | Right-discharge |
| Cut Height | 1 to 4 inches (2 to 10 cm) |
| Weight | 150 lbs (68 kg) |
46″ Blade
| Brand | John Deere |
| Mount Type | Front-Mount |
| Width | 46 inches (116 cm) |
| Height | 17 inches (43 cm) |
| Lift | 5 inches (12 cm) |
| Cut | 3 inches (7 cm) |
| Weight | 118 lbs (53 kg) |
| Lift Type | Manual-Lift |
42″ Snow blower
| Model | John Deere BM18789 |
| Width | 42 inches (106 cm) |
| Type | Single-Stage |
| Clear Height | 16 inches (40 cm) |
| Mount Type | Front-Mount |
| Lift Type | Manual-Lift |
| Weight | 175 lbs (79 kg) |
Electrical
| Ground | negative |
| Charging system | flywheel alternator |
| Battery CCA | 500 |
| Battery volts | 12 |
| Battery Group | 51 |
